Electric Strikes & Locks

Electric Door Strikes

These commercial and industrial rated door strikes can withstand the traffic involved with access control applications. They are tested to 500,000 cycles.

These strikes are fail locked (fail-secure) for free exit applications. Do not use to control egress. Can be used with cylindrical, narrow line and mortise locks with centerline latch entry.

The strikes are listed under UL10B (fire rated), UL1034, ANSI/BHMA E09321 and New York City MEA 404-91-M.

Holding force:

• 906 kg (2,000 lbs) for fire rated models
• 634.2 kg (1,400 lbs) for non-fire rated models

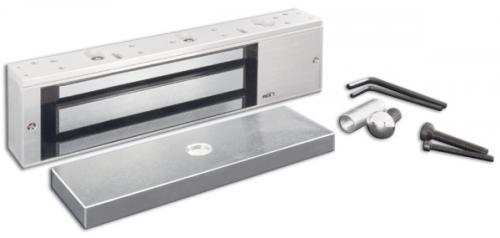

Electromagnetic Locks

These solid construction electromagnetic locks will provide years of maintenance-free operation. Dual voltage (12-24 VDC) operation and up to 680kg (1,500 lbs) of holding force fits most requirements.

The supervised option (SCS model only) provides lock status information (locked or unlocked) and will detect reduced holding force due to the presence of materials between magnet and armature, or power loss.

• Dual voltage
• Adjusting manual bracket
• MOV surge protection
• Anodized clear aluminum finish
• No residual magnetism
• Easy access wiring cavity
• Installation by Pre-Lock Security Services
